3D Profile

Command features were expanded, and the command interface was optimized. All the command options are divided into four main principles for obtaining a profile:

•3D Profile by 2D Elements

•3D Profile by 3D Elements

•3D Profile Projection

•3D Profile by Unfolding

The listed options for creating profiles can be specified in the command submenu, or selected in the Ribbon, or selected automatically based on the selected elements.

When creating a profile based on 2D elements, you can now explicitly specify the creation of a profile based on shading, text, or color.

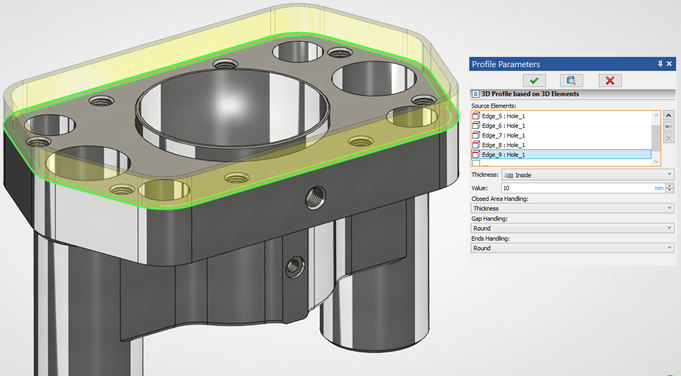

When creating a profile based on 3D elements, there is a new Offset option for creating a profile as an offset curve from an existing profile. If the profile is multi-contour, the offset will be created from all the contours. The Offset direction is determined from the list as Extend or Reduce.

When projecting a profile to a face, the projection direction is automatically determined based on the selected face. If there is a situation where the projection direction can be interpreted in two ways, you can select the desired direction option using the change projection direction flag.

The 3D Profile command interface was updated. The icons for final geometry switching are now at the top of the dialog.

The Thickness list now contains options for thickness mode defining. By default, if there are no self-intersections, the option without thickness is selected.

All the selected items are specified in the dialog and can be deleted selectively or all together.
