3D Constructions of Support Geometry

For surface modeling, it is important to have convenient tools for working with support geometry, so 3D Path, 3D Profile, 3D Node and Workplane commands have been significantly improved. There are new ways to create support geometry elements. Command dialogs are more convenient.

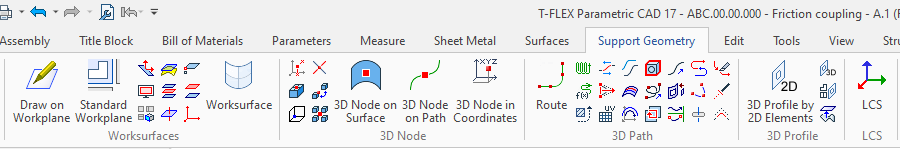

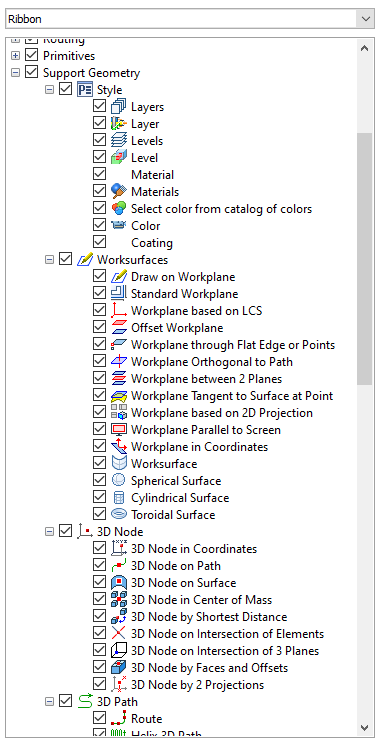

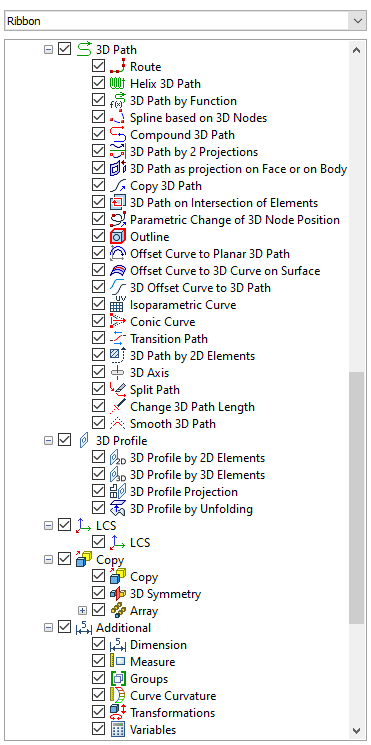

Various Worksurface, 3D Node, 3D Path and 3D Profile types can now be called directly from the new Support Geometry ribbon tab:

Updated commands:

•LCS

•Intersections with Workplane

•Route

•3D Path

•3D Profile

•3D Node

•Workplane
