Route

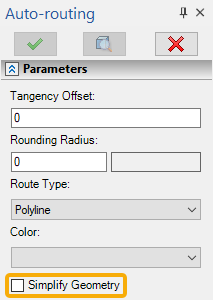

The Simplify Geometry option is added to the Auto-routing command.

Simplifying merges segments of route if all of the following conditions are met:

•Tangency Offset is equal to zero;

•Rounding Radii of segments are equal to each other;

•Route Type of segments is the same.

Let's create two similar routes - first without simplification, second with simplification.

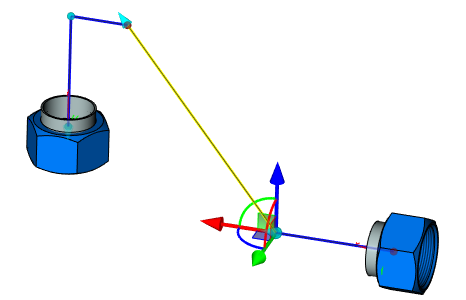

The route created without simplification consists of three segments.

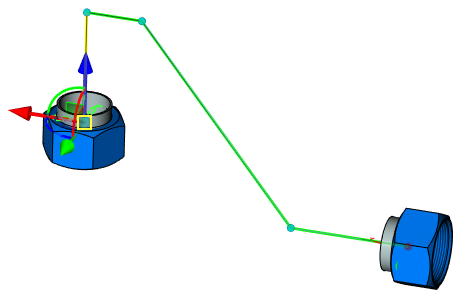

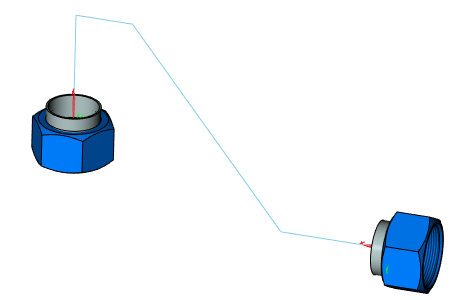

The route created with simplification has the same shape, but consists of the single segment only.



Figures above also show that the Route command now has buttons for moving the selected segment up/down the list.
