02_LCS

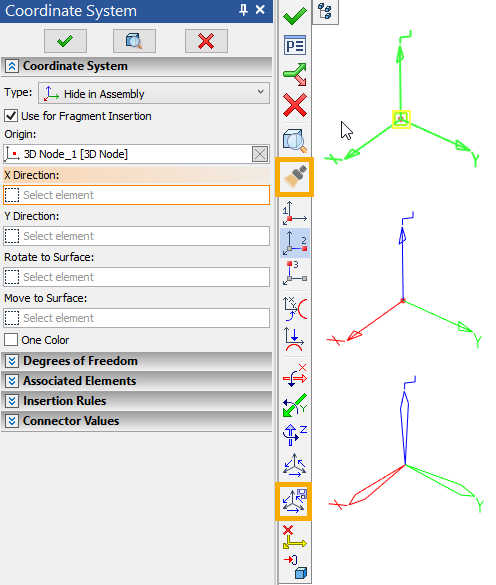

New options have been added to command's automenu:

FormatByPattern30x30

<С>

Format by Pattern

Select an existing LCS, upon activating this option. All parameters of the selected LCS, except connector values and origin position, will be applied to the current LCS.

SaveOrientation30x30

<К>

Save given orientation

Upon activating this option, all rotations applied to the current LCS via Xrotation, Yrotation, Zrotation, and LCSRotation options will be automatically applied to the next LCS created after the current one.

Keep in mind, that this option doesn't affect rotations resulting from aligning axes to selected elements.
