Blend

Предыдущая страницаВ началоСледующая страница

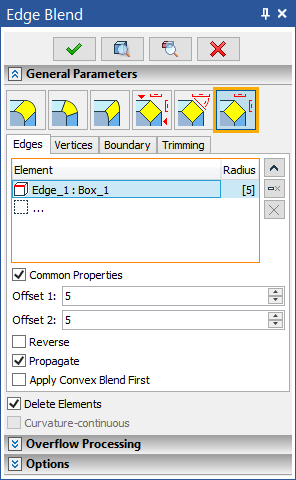

Added a new type of chamfering - Chamfer (Offset along Faces).

New1750

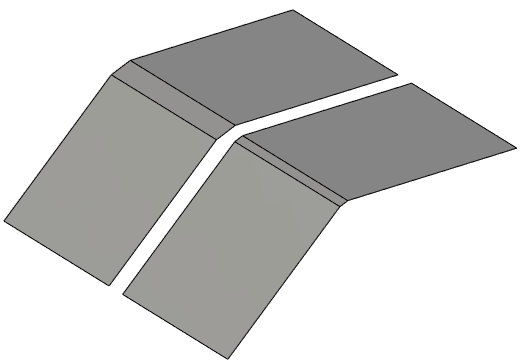

The chamfers of type Offset along Face (left) and Offset (right) with offset 1 and 2 parameters by 5 mm are shown below:

New1751

As you can see from the figure, in the new type of chamfer Offsets along Face are offset by 5 mm along the edges, while in the old type of Offset 5 mm values are converted to other values due to the angle between the edges other than 90 degrees.

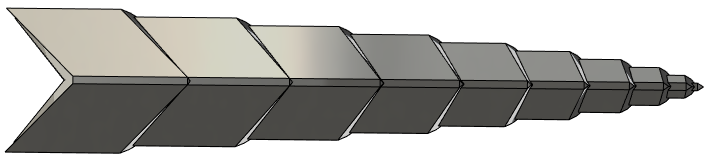

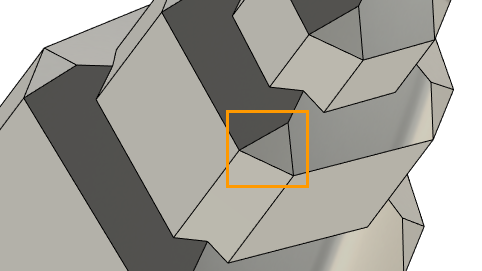

Also, the ability to create a chamfer in the Blend command has been enhanced.  Now the chamfer can be created at the intersection of several edges.

New1752 New1753
