Clip Plane

Clip Plane command, which is used to quickly create simple sections by a plane on a 3D model, was improved.

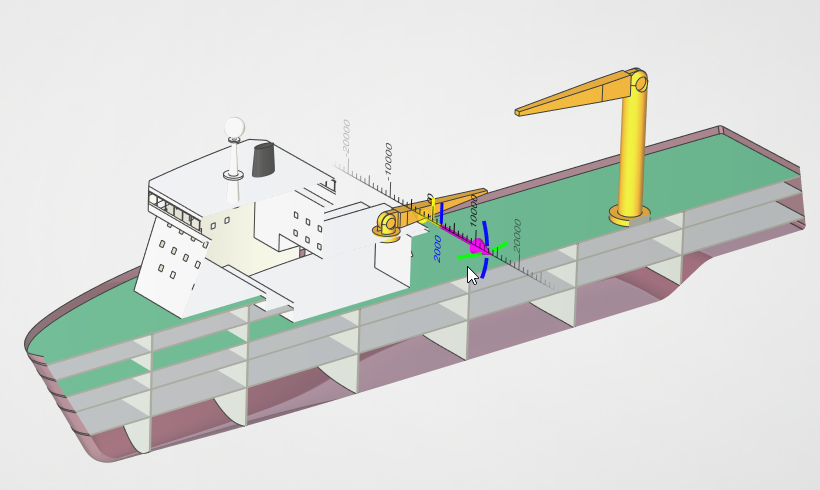

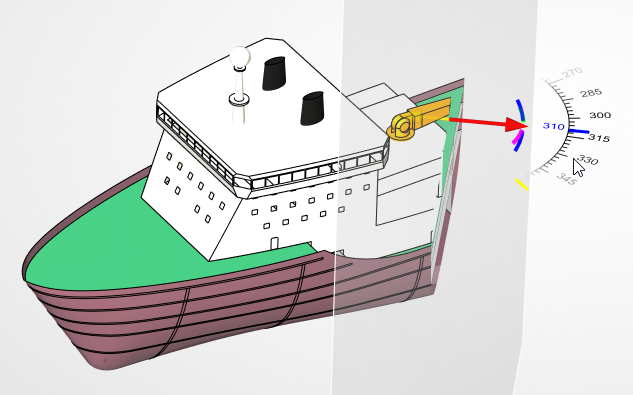

- Added standard manipulators for moving and rotating the clip plane with rulers and protractors;

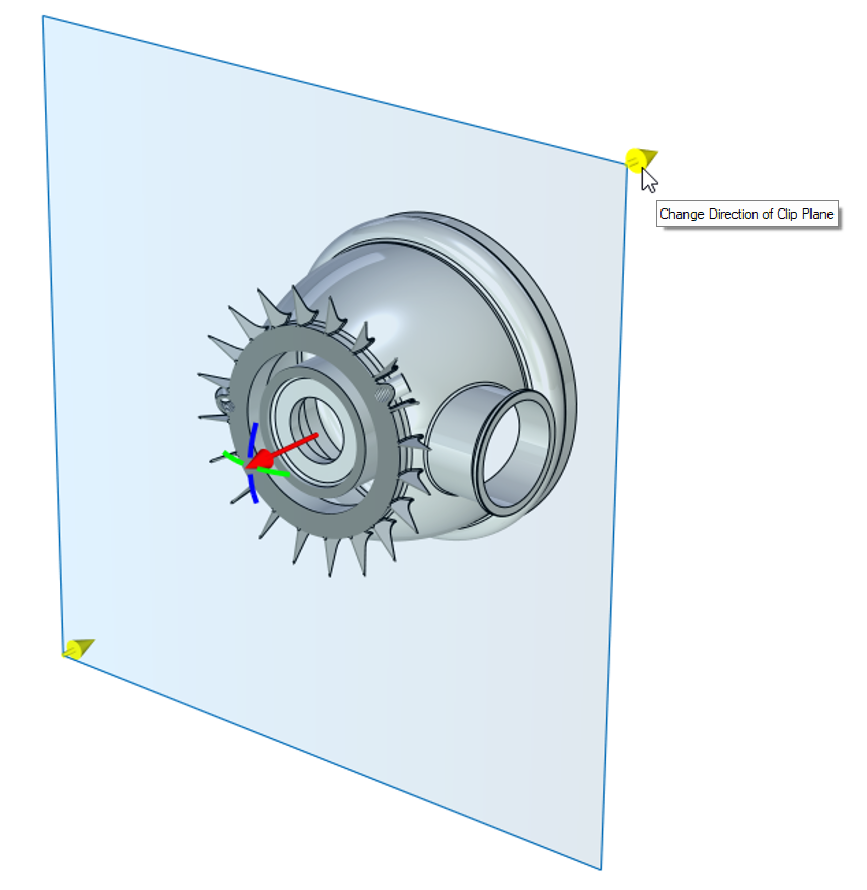

- Added manipulator to change the direction of the clip plane;

- Added standard views for quick dissection of the model - Front View, Right View, Top View. The section for the Back, Left, Bottom views can be obtained by quickly switching the direction change manipulator;

The command works in a special mode, which allows you to apply or cancel changes. In this mode, the clip plane is displayed and manipulators are available;

- The clip plane is constantly displayed while the clip plane creation mode is active. The command is excluded from the drop-down menu;

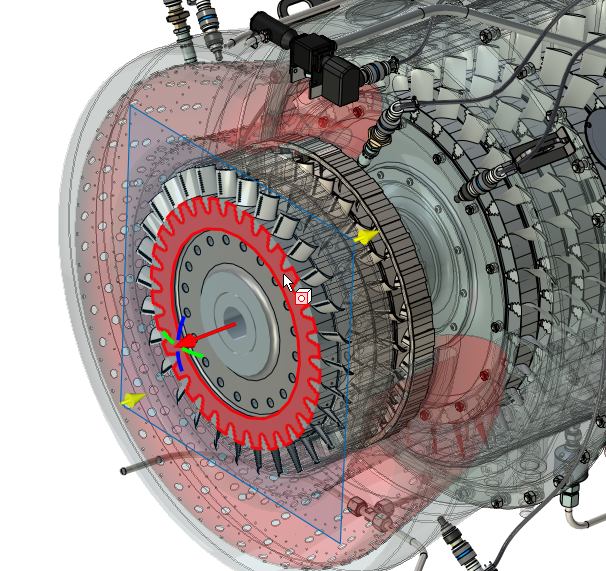

When the clip plane is activated, a manipulator and a secant plane appear in the scene, and a special mode is activated. The Active option allows you to enable/disable the previously set clip mode - i.e., go into editing it. The remaining options re-create the clip plane.

When saving the clip plane - exit the mode with confirmation of creating the clip plane - to move the clip plane, you can use ctrl + shift + LMB - as in previous versions of the system.
