Command Dialogs

Work is underway to renew interface of dialogs of various commands: 3D Node, LCS, 3D Profile, 3D Path, Rotation, Boolean, Sweep, Cut, Fill Hole.

In new dialogs, the switching of modes and options of commands is more visual and convenient.

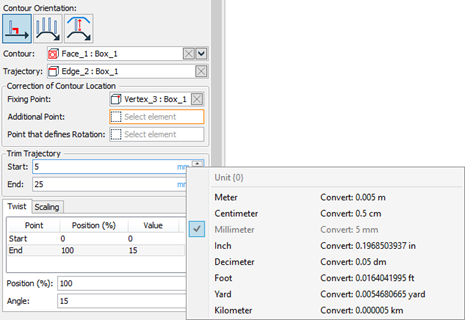

Selected input elements elements are placed in editable lists, which are located on tabs if this implies the logic of working with the command. In all input fields, a choice of units is available.

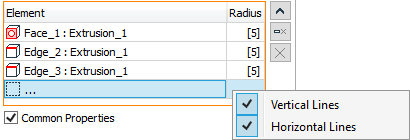

In the element selection fields, a grid display setting is available.

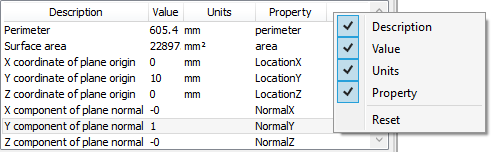

In the parameter settings fields, visibility and column order control are available.
