Customizable Element Set Under Cursor

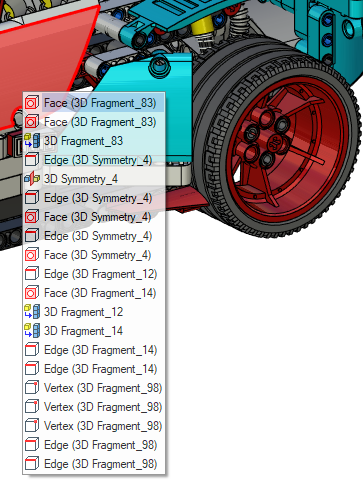

Element selection from the list under the cursor was improved.

You can set the appearance time of the pop-up tip for the element under the cursor in the Option dialog in the Additional Options tab. In case there are several elements, set the element list. The time is set in milliseconds.

List transparency can also be set in the Additional Options tab: it is convenient when you need to see the selected element under the list. Restart T-FLEX CAD for the set 3D graphics display parameters to come into effect.

When necessary, you can call the element list immediately by using <Tab> key or by one click on the center mouse button.

After the element list appears, you can change element selection in the list with the help of keyboard or mouse. If it is necessary to switch forward between the elements in the list with the help of keyboard, use <Tab>, in case of backward switching use <Shift>+<Tab>. Confirm element selection from the list by mouse click or by pressing <Enter>.
