Convert Body to Sheet Metal

To convert a body into sheet metal Convert Body to Sheet Metal operation is used. To call the operation:

Convert Body to Sheet Metal operation is used to quickly create sheet metal bodies or unfoldings from other bodies (solid or surface). The result of Convert Body to Sheet Metal operation is sheet body unfolding or a sheet part preserving the shape of the initial object.

Operation description

Bodies (solid or surface) with flat faces can be used as initial bodies for the operation.

Stationary face

Body unfolding takes place relative to the first face chosen which is considered fixed and determines the unfolding plane position. This face is called stationary face.

Any flat face of the body can be chosen as stationary one. The edges for folding that will be involved in the operation are set relative to it. Stationary face is highlighted blue after being selected.

Edges for folding

After the stationary face is selected it is time to select edges for folding. The first of the selected edges must be one of the stationary face edges. After the edge is selected the second of the faces building it gets involved in the operation. The moment it is done, you can select other edges of this face as folding edges. Therefore to select a face you need to select at least one of adjoining edges. Further on when building a sheet body a bend will be created at the selected edges, whose radius value is specified in the operation parameters.

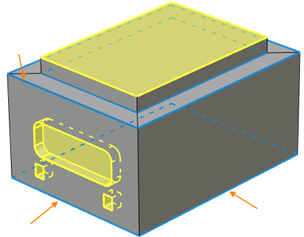

All the faces which the selected edges refer to are highlighted gray. The faces which are not involved in the operation are highlighted yellow.

When selecting the edges, you should make sure that there are no collisions between the sheet elements obtained. This is because it is impossible to obtain a self-crossing flat template with the help of this operation.

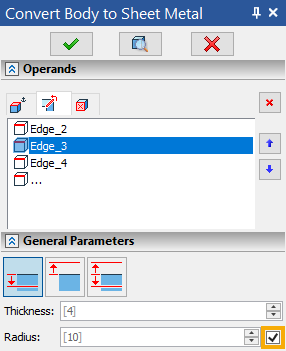

Selected edges are shown in the Bend Edges list on the Operands tab of the command's parameters window. If you select an edge in this list, then the Common checkbox will appear near the Radius input box in the General Parameters tab of the command's parameters window. By default, this checkbox is enabled, which means that the value in the Radius input box is common for all edges. If you disable the checkbox, then the value will be individual for the particular edge.

Adding thickness

An equidistant surface at a given distance equal to the specified thickness is created for every selected face. The new surface is built inwards, outwards or symmetrically depending on the variant chosen in the parameters window.

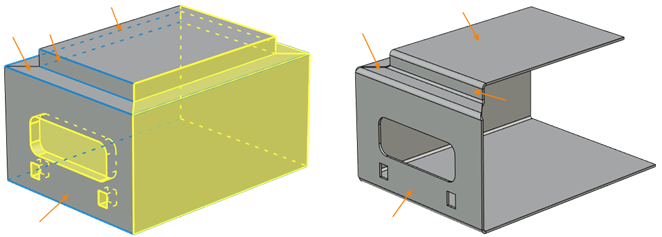

After finishing the operation all the selected faces are converted into sheet metal and the faces not selected are deleted.

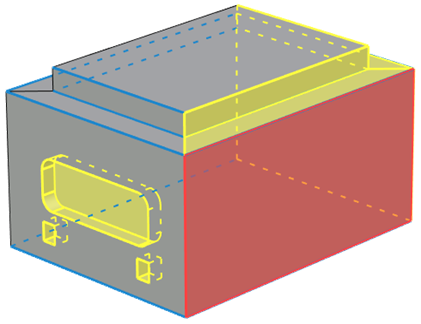

By default, all the faces highlighted yellow will be deleted when the operation works. If it is necessary to delete a selected face, <D> Select removable faces option is used. The selected face is added into Removed Faces tab of the Operands group in the parameters window and is marked red if selected in the list. In order to cancel face selection for deleting, switch to Removed Faces tab of the Operands group, select the face and press Delete. The button is to the right from the faces list.

Operation parameters

Thickness enables users to set thickness of the obtained sheet metal. Thickness direction can be specified. The following modes are available: inwards, outwards, symmetrically.

Radius enables users to specify the rounding radius of sheet metal faces. It is general for all the commands of sheet metal working.

K-Factor determines the way to specify neutral layer coefficient. It is general for all the commands of sheet metal working.

Radius, K-Factor and Thickness are taken into account when calculating unfolding length by bending radius arc.

Remove bend edges. An absolutely smooth sheet body is created in the places of bend. When the option is active, Bend Result operation is not executed.

Keep Source Body. The initial body is added to the current operation result. The option is useful for evaluating how the bended part is inscribed in the initial body dimensions.

Keep Resulting Body Only. This checkbox appears upon enabling the Keep Source Body checkbox. When both checkboxes are enabled, the source body is not displayed on flat pattern projection (unfolded view).

Corner group combines general commands parameters of sheet metal working and are described above.

The following automenu options are available:

Finish input. To build geometry according to the given parameters. In case the parameters are insufficient, the option is not available.

Set entity Parameters. Calls a standard 3D design command parameters dialog.

Exit command. Shuts down the command canceling the given parameters.

Preview Operation Result. Enables/disables a standard option for reviewing 3-D design commands.

Select fixed face. Selects the stationary face relative to which the operation proceeds.

Cancel Selection. Cancels selection of all the faces and edges involved in the operation. The option returns to the operation start. It is necessary to select a stationary face and edges again. All the values specified in General Parameters tab (thickness, radius etc.) stay the same.

Select bend edges. Selects the edges by which bending radius will be built. After activating it is necessary to select the edges bordering with the faces involved in the operation starting with the stationary face edges.

Select removable faces. Removes faces from the operation. After selecting the faces involved in the operation you can activate this automenu option and specify the selected faces to be removed as the result of the operation. The edges adjoining the removed faces become unavailable for selection.

Edit rip edges. Enables users to select the edges for changing the gap and overlap type separately. You should choose an edge joining two faces involved in the operation. In the center of the selected edge there will be a label consisting of two sections: overlap type switch icon and gap value. Overlap types are switched in series by clicking on the overlap icon.

When clicking on gap value an input box appears.

Change relief type to square at selected vertex. Sets weakening at the given vertex. Weakening type can be changed to other than the default one at the selected vertex. By default all the vertices have round weakening. Weakening type can be chosen from a drop-down option list before selecting the vertex: Change relief type to square at selected vertex or Change relief type to welding at selected vertex.

After you choose the vertex a special label appears near it. The type set for the vertex can be changed by clicking the label.

To cancel the change of weakening at a vertex, select the vertex again. If there is no special label of weakening change at this vertex, a default weakening of Round type will be created.

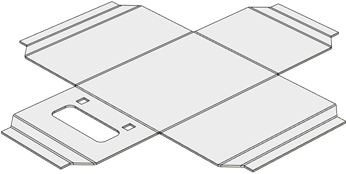

Bend result. Enables/disables an additional command - Re-bend. If the option is enabled, the sheet metal part preserves the initial object shape. If the option is disabled, the sheet metal part will be unbent and unfolding will lie in the plane set by the stationary face.

After finishing the operation with Bend result option enabled, another operation - Re-bend – will appear in construction tree, in addition to unfolding.

In case of properties change in an operation which was already created, Bend result automenu button becomes unavailable. The reason for that is to preserve the logic of operations sequence in case there are other operations in 3D Model window after Unbend.

Creating the operation

A typical procedure for creating the operation is as follows:

•To select a stationary face of the body

•To set sheet material thickness and rounding radius of the faces, otherwise they will be set from parameters by default

•To select the edges involved in the operation

•To enable/disable the options: bend result, flat body, initial body (if necessary)

•To set additional operation capabilities: weakening type, overlap type, gap between adjoining edges (if necessary)

•To finish input.
