Create New Document from Prototype

Calling the command:

The command is also available in the quick access toolbar.

It allows to create a new document from one of the prototypes available in the system.

In the command's dialog, you should specify a desired prototype and press OK. In result, the system will open a window of a new document with the same set of view windows and same tab of the ribbon, that were open at the moment of saving the selected prototype. The initial content and parameters of the resulting document coincide with content and parameters of the prototype.

The list of prototypes available in the upper section of the dialog is common for several commands. Changes made in one of the commands affect the content of the list in others. Information on editing the list can be found in the description of the Save as Prototype command.

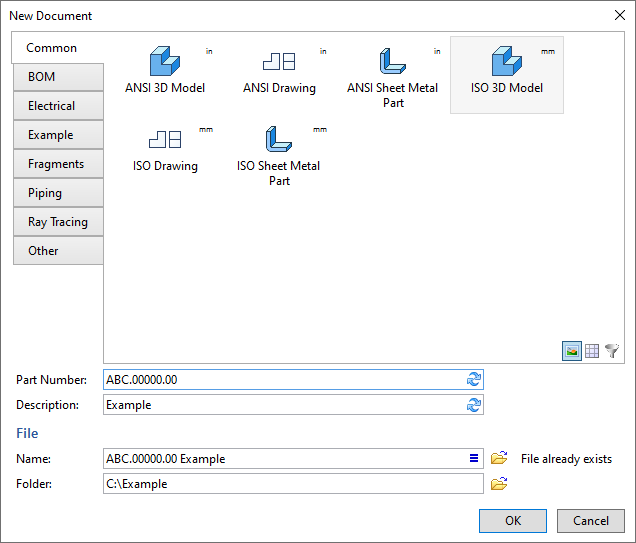

Additionally, you may specify following parameters in the lower section of the dialog:

•Part Number and Description
Content of these input boxes will be recorded in eponymous columns of resulting document's product composition. If Part Number and Description are specified in product composition of a prototype, these boxes will be filled automatically, upon selecting such prototype. You may edit auto-filled values, if necessary. In order to restore an auto-filled value use the Update by Selected Prototype at right side of an input box.

•Name
Name of the resulting document's file. If Part Number and/or Description are filled (see above), the default name is generated automatically using them. The format of auto-generated name can be customized using the Naming rule button at the right side of the input box. The button invokes the following dialog:



In the list in the upper section of the dialog, you can select one of the options defining the order of using Part Number and/or Description in auto-generated name.
In the Format input box, you can supplement the selected option by adding symbols before, after or between Part Number and/or Description.

In the Symbols input box you can specify symbols to be omitted from the end of the resulting name.

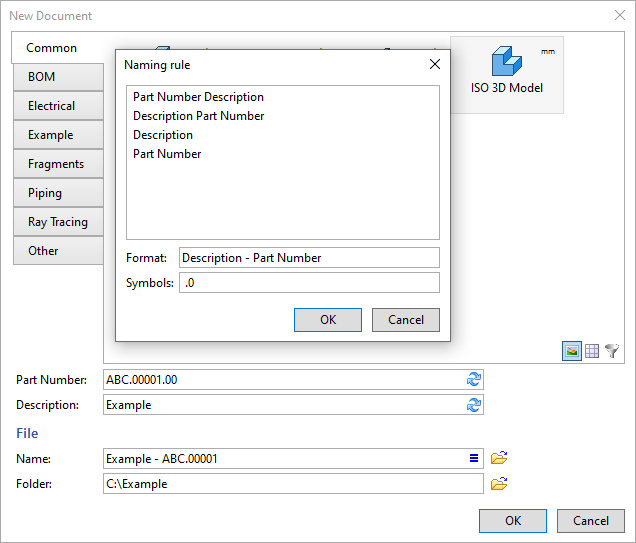

The example of the naming rule usage is shown in the picture above.

The Select button located to the right of the Name input box invokes the standard file selection dialog, where you can select an existing file to be replaced by the resulting one. Upon selecting a file, Name and Folder input boxes get filled automatically, and the "File already exists" notice appears to the right of the Name input box.
If you leave the Name box empty, the name of the resulting document will be generated by adding an index number to the name of the selected prototype. Index numbers are counted from 1 for all documents created from this prototype within the current T-FLEX CAD session.

•Folder
Path to the resulting file. The Select button located to the right of the input box invokes the standard folder selection dialog. In case of using the folder selection dialog, the Folder box gets filled automatically in accordance with the location of the selected folder. In case of inputting a path via keyboard, the "Incorrect path" notice appears to the right and the input box gets highlighted in red, if the specified path cannot be found.

See Also:

•Save as Prototype
