Edit Circles. 2D Constructs

Apart from using common automenu options described in the Edit 2D Constructs section, when editing circles, you can change their tangency parameters using the following additional options:

Allows you to select a node for the current circle to pass through. Activating the option via keyboard instantly selects a node nearest to the current position of the cursor. Upon activating the option via mouse, you have to make a click within the drawing window, which results in selecting a node nearest to the point of clicking.

Allows you to select a line or an another circle for the current circle to pass through. Activating the option via keyboard instantly selects a line of the corresponding type nearest to the current position of the cursor. Upon activating the option via mouse, you have to make a click within the drawing window, which results in selecting a line of the corresponding type nearest to the point of clicking.

If the current circle is tangent to some lines, activating this option switches between possible tangency confirations.

Selection of a tangency configuration performed via the previous option () may reset upon changes in linked element's configurations. You should set a relation with node in order to fully define the tangency configuration.   Activating the option via keyboard instantly selects a node nearest to the current position of the cursor. Upon activating the option via mouse, you have to make a click within the drawing window, which results in selecting a node nearest to the point of clicking. In result, a tangency configuration nearest to the selected node will always be applied for the circle.

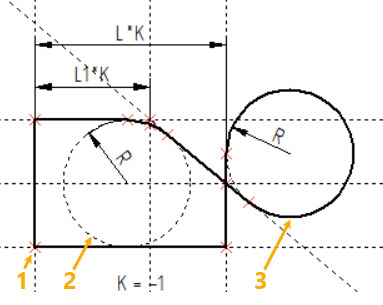

The node 1 defines the tangency configuration of the circle 2.

The tangency configuration of the circle 3 is not fully defined.

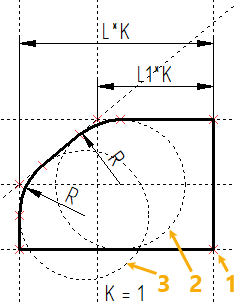

The result of changing the value of the K variable is shown below.



Cancel selection of a node defining the tangency configuration made via the previous option.
