3D Path by Function

 Предыдущая страницаВ началоСледующая страница

Calling the command:

Icon

Ribbon

3DPathByFunction35x35

3D Model > Construct > 3D Path by Function

Assembly (3D) > Construct > 3D Path by Function

Sheet Metal (3D) > Construct > 3D Path by Function

Surfaces > Construct > 3D Path by Function

Weld > Construct > 3D Path by Function

Primitives > Construct > 3D Path by Function

Support Geometry > 3D Path > 3D Path by Function

Keyboard

Textual Menu

<3PL>

Construction > 3D Path by Function

Automenu of the 3DPath20x20 <3PA> 3D Path command

<N>

3D Path by Function

This command allows you to create a 3D path using a function in a given coordinate system.

There are 3 types of coordinate systems available - Cartesian, Cylindrical, Spherical. Each coordinate system has its own set of parameters. So, for example, for a Cartesian coordinate system it is proposed to specify formulas for X, Y, Z, for cylindrical with respect to ρ, φ, Z, and for spherical with respect to ρ, θ, φ.

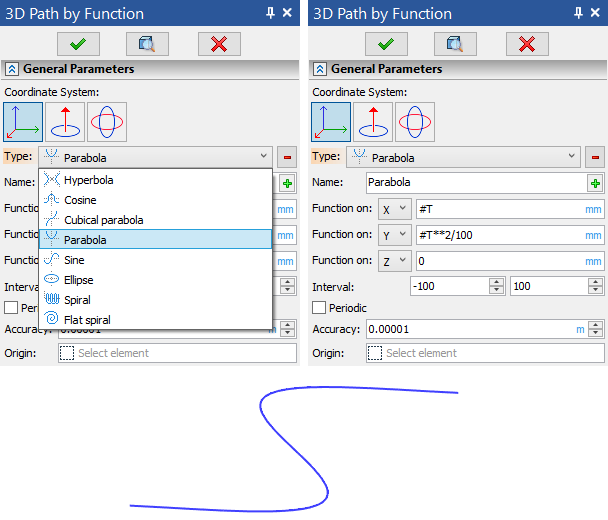

For all types of coordinate systems, it is possible to select, create and delete a type of function.

PathByFunct1

For each type of coordinate system, it is possible to set the interval, accuracy and select the origin of the 3D path. You can also close the 3D path using the Periodic option.
