Spring

Предыдущая страницаВ началоСледующая страница

Calling the command:

Icon

Ribbon

Spring

3D Model > Advanced > Spring

Keyboard

Textual menu

<3SP>

Operation > Spring

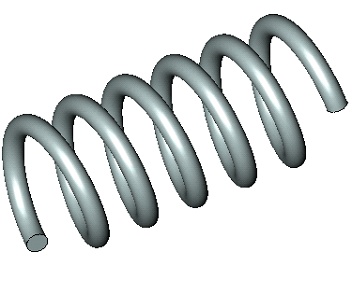

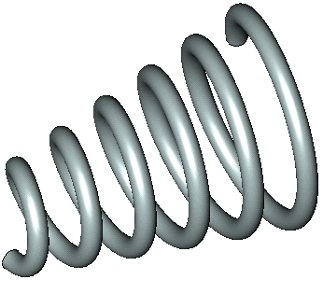

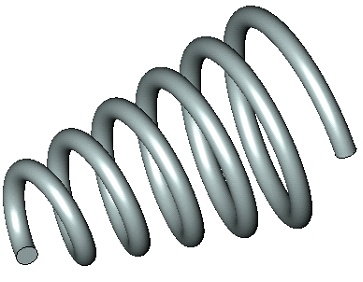

The Spring operation creates a 3D body as a conic or cylindrical helix-shape spring with round profile. The body is created by sweeping a circular profile along a helical curve defining the spring trajectory.

clip6509           clip6510               clip6511

Topics in this section:

Main Concepts of Spring

Create Spring

Edit Spring
