Intersection of Graphic Lines

The command can be called in one of the following ways:

For intersection, you can select the type.

To change the intersection, activate the line Intersection command and select a line that has intersections with other lines.

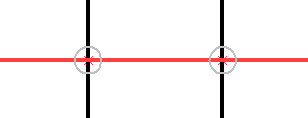

In this case, a gray circle appears at the intersections, showing active intersections.

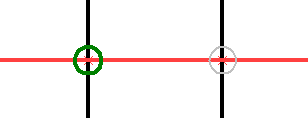

Next, you need to select and click on the gray circle, while it will become active, this is evidenced by its changed color - green.

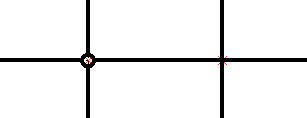

Now you can change the shape of the intersection in the command parameters. After all the parameters are configured, you can complete the operation .

For some forms, an option is available in the automenu:

This option allows you to change the direction of the intersection shape.
