Chamfer by Length and Angle

The mode of creating chamfers by length and angle can be called in the Edge Blend command using the Chamfer (Length-Angle) button located in the upper part of the parameters window.

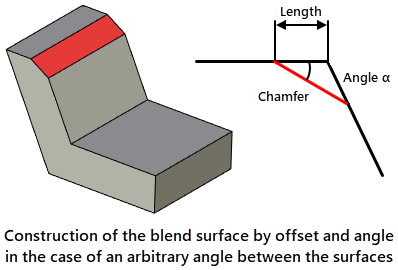

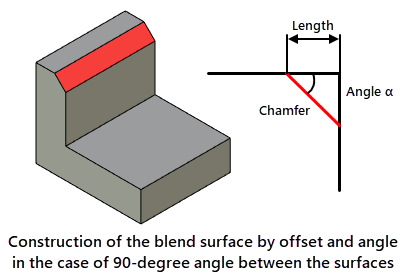

The chamfer can be specified by length and angle. The algorithm for constructing a chamfer by length and angle is illustrated in the following figures:
