Macro of Fitting

When you create a new fitting a standard macro text is added into its file. In the macro you should specify a type of fitting.

Here is example of typical macro text for the Crossing type.

using System;

using FittingImport;



namespace FittingImportNamespace

{

 public class FittingImportClass

 {

         public static void Fitting_InsertAsFragment()

         {

                 FittingImport.TFFittingImport.Create(FittingType.Crossing);

         }

         public static void Fitting_EditFragment()

         {

                 FittingImport.TFFittingImport.Edit(FittingType.Crossing);

         }

         public static void Fitting_DeleteFragment()

         {

                 FittingImport.TFFittingImport.Delete(FittingType.Crossing);

         }

 }

}

More information about macro can be found in the Macros chapter.

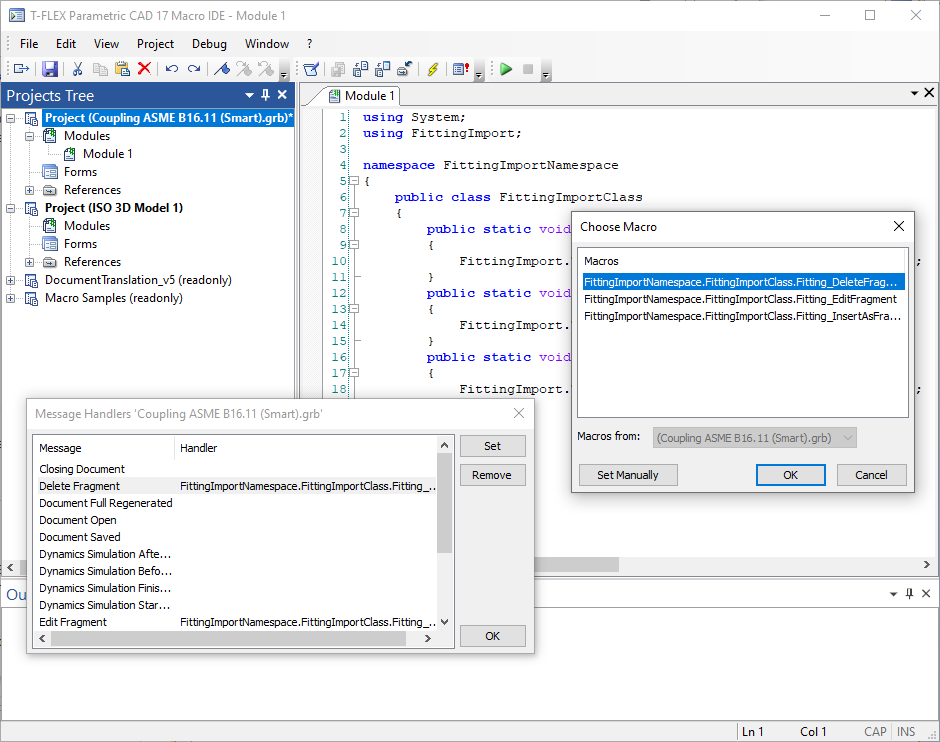

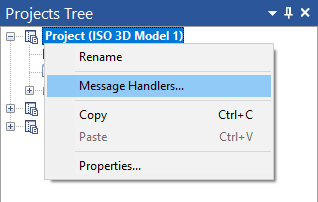

Also you need to set three message handlers: Fitting_InsertAsFragment, Fitting_EditFragment, Fitting_DeleteFragment.

To compile the macro you need to add link to the FittingImport in the project.
