Cropping 2D Projection

Automenu for most projection types contains the following option:

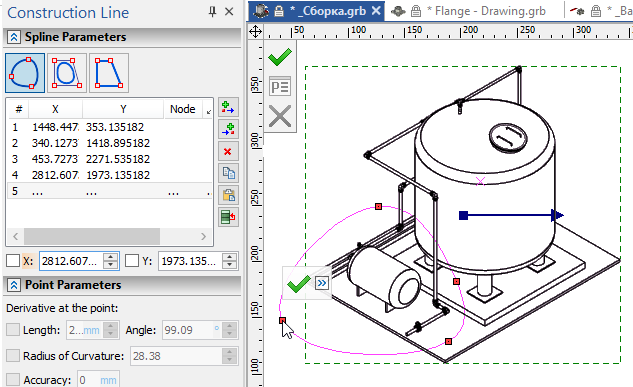

Spline creation command is launched upon selecting this option:

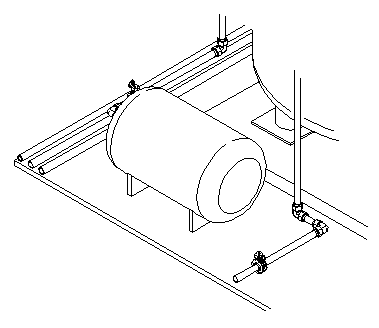

Upon finishing spline creation, the system returns to projection command and selects this spline as a view outline.

Use the following automenu option to cancel view clipping:

It can be used both, when creating a new projection, and when editing an existing one using the Edit option in projection's contextual menu.

See Also:

•Breaks of 2D Projections and Drawing Views

•Exclusions for Elements of 2D Projection
