Workplane based on LCS

The command can be called in one of the following ways:

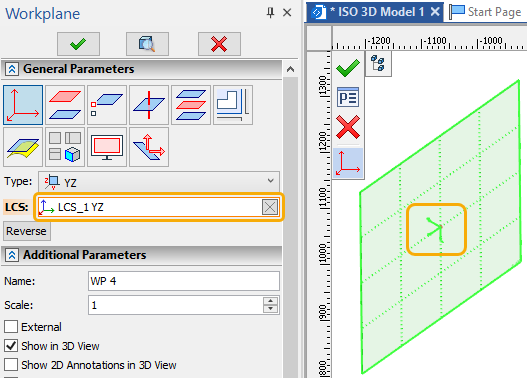

This command allows you to create a workplane based on the LCS.

Workplanes in a 3D coordinate system are useful when the workplane has a complex orientation angle in space.

In this case, the orientation angle is determined in accordance with the orientation of one of the main planes of the 3D coordinate system - XY, XZ, YZ, YX, ZX, ZY.

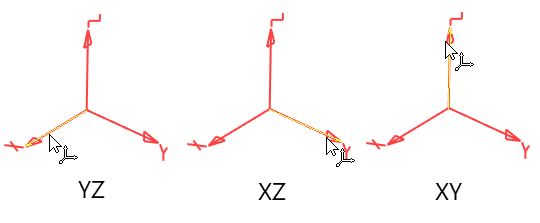

In addition to selecting the appropriate plane in the parameters window, you can select it or by hovering the mouse over the necessary plane...

... or by selecting it from the dropdown list:

Additional Parameters are described in the corresponding section.

Sequence of creation

1. Create the required coordinate system using the LCS command.

2. Call the command Workplane based on LCS.

3. Select the created LCS.

4. Select Type in the dropdown list if necessary.

5. Customize additional parameters if necessary.

3. Confirm the creation of the workplane.
