Applications

Calling the command:

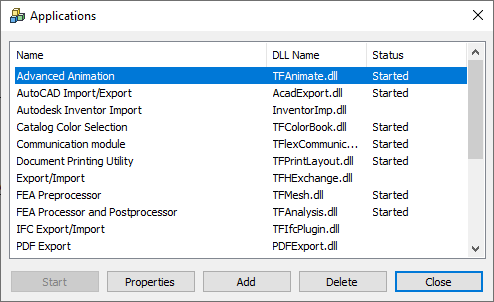

The command is designed to launch external applications. After running the command, a window will appear on the screen containing a list of applications with the following fields:

Name - app name.

DLL Name - name of the application file.

Status - application status (for example, 'Started').

There are the following options for working with the list of applications:

•Start. Launching a non-working application.

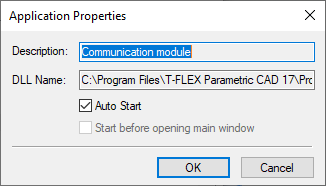

•Properties.  Calling a dialog window with the following settings:



oAuto Start. If the flag is set, the application will be launched when T-FLEX CAD starts.

oStart before opening main window. When the flag is set, the application will start working before loading the main system window.

•Add. Adding Custom Applications.

•Delete. Removes the selected application from the list.

•Close. End command execution.

By default, the list contains various applications, such as:

•Printing several documents (PrintLayout.dll)

•Animation scripting module (TFAnimate.dll)

•Converting documents from earlier versions (TFConv.dll)

•Drawings design module (Titleblk.dll)

•Nesting module (TFSheo.dll). This module contains a separate help file that is called when the application starts.

•Example of Custom Application (StarsPlugin.dll)

Topics in this section:

•Adding Custom Applications

•Example of Custom Application
