Cut

 Предыдущая страницаВ началоСледующая страница

Calling the command:

Icon

Ribbon

Cut

3D Model > Advanced > Cut

Sheet Metal (3D) > Advanced > Cut

Surfaces > Advanced > Cut

Keyboard

Textual menu

<3CU>

Operation > Cut

The cut operation allows cutting bodies (solid or surface) by surfaces. Surface bodies, Worksurfaces and Workplanes, 3D sections, 3D profiles, faces and arrays of all mentioned elements can be used as cutting surfaces. Depending on the selected command mode and parameters, operation may result in deleting a part of an original body or splitting an original body into several parts with or without creating new bodies. Following command modes are available:

CutCut40x40

Cut

CutSplit40x40

Split

CutSplitSepar40x40

Split with Separation

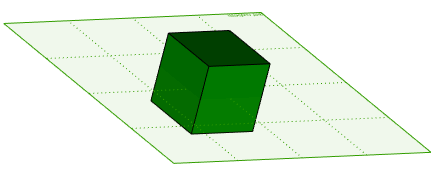

14.Cut0tree14S.Cut0

Original body and cutting plane

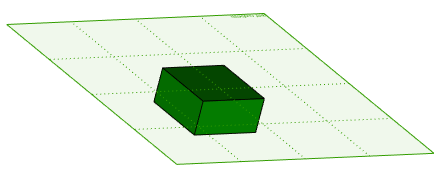

14.Cut1tree14S.Cut1

CutCut20x20 Cutting result:
part of original body is deleted

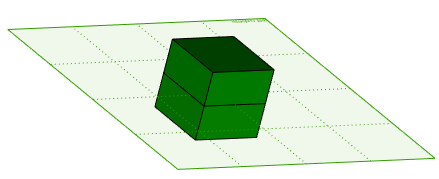

14.Cut2tree14S.Cut2

CutSplit20x20 Splitting result:
original body is split into parts

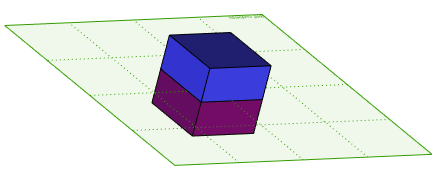

14.Cut3tree14S.Cut3

CutSplitSepar20x20 Splitting with Separation result:
original body is split into two new bodies

Topics in this section:

•Create Cut

•Edit Cut
