External Model

Calling the command:

The command to insert a Parasolid-format model is intended for inserting 3D models in the Parasolid, STEP, ACIS , IGES, Siemens NX (Unigraphics), Creo/ProE, SolidWorks, Catia V5, Catia V4, Autodesk Inventor, Solid Edge, Rhino, I‑Deas, JT, PRC, VDA-FS formats. The model inserted in this way becomes a normal operation of T-FLEX CAD. Remember, however, that an external model that is made of several operations becomes a single object upon inserting in T-FLEX CAD. To do further manipulations over a separate body of such model, you first need to use the Divide operation.

Inserting an external model resembles creation of a 3D fragment, however, with limited capabilities. Thus, for example, you cannot set the values of external variables. Neither can you select the original attachment coordinate system (the model global coordinates are used instead).

Modes of working with external model

When inserting an external model, the current document keeps the reference to its file and its original geometry. In the future, the user can select one of the two modes of working with the external model:

• In the first mode, the system tracks all changes to the external model file. If the file modifies, the external model adjusts in the current document.

• In the second mode, the changes to the external model file are ignored. When working with the model, the geometry is used that was stored in the current document upon the last exchange with the model file. Nevertheless, the reference of the model file is saved in the current document anyway, which allows reverting to the first mode. Use of this mode provides fast handling of the current document with less memory required, however, it increases the size of the document when saved on the disk. This mode supports working with the document with an external model inserted in it, even when the external model file is absent.

The second mode is turned on automatically, if the system fails to find the external model file.

External model insertion

To insert an external model, you need to do the following steps:

1. Select external model file. The selection of the external model file is done in the command property window or by the option:

There are two additional information fields in the external model parameters window below the file name input field. One of them displays the full path to the selected external model file, the other one - the external model source file (that is, the file based on which the Parasolid-format model was created).

Information about the source file is displayed if the corresponding information is stored in the source file.

The Open Source File command will be available in the context menu of the created external model. This command opens the source file if it exists in the path specified, by using the application matching the given file type.

2. Select or create source coordinate system.

Selection or creation of source coordinate system can be done by option:

Coordinate system of external model is used by default.

3. Select or create target coordinate system.

Selection or creation of target coordinate system can be done by option:

This option is set automatically upon selecting the external model. Selection of the target coordinate system amounts to selecting an LCS at which the external model’s coordinate system should be placed. If no coordinate system is selected, the global coordinate system is used by default.

Selection of the target coordinate system can be undone by the option:

The process of selection/creation of source and target coordinate systems is described in the 3D Fragment Attachment section.

4. Define the external model parameters (optional).

The following parameters can be defined in the operation parameters window:

•Update geometry. This parameter defines the mode of working with the external model. When the flag is set, the first mode is used (tracking all changes in the model file). Unsetting the flag turns on the second mode.

•Use imported materials. This parameter supports use of the original materials of the external model.

•Fix file version. If the parameter is enabled, the current version of the file will always be used, if it is disabled, the older version of the file will be used when updating. By default, the parameter is enabled.

The external model parameters can be defined in the common operation parameters dialog box called by the option:

4. Complete operation creation ( in the property window or in the automenu).

The external model will be displayed in 3D only after the creation of the operation is completed or when previewing the result of the operation using . While creating an external model, the system runs the consistency check on the imported model. If there are errors in the model, then a window is displayed with the error message and suggestions for possible actions.

An external model can also be created by executing the command Importing Documents.

Break Link with Source File

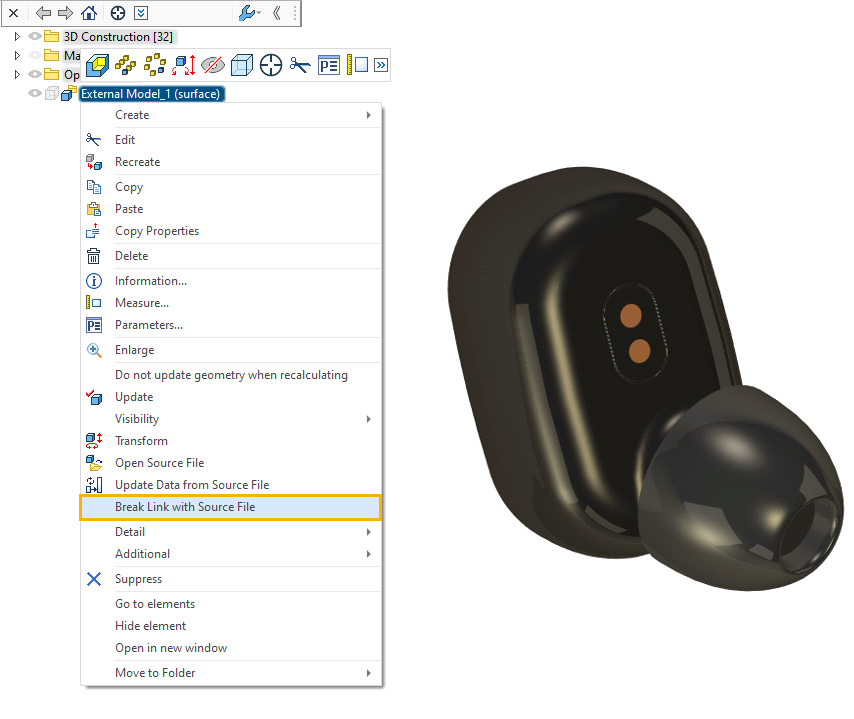

Added the ability to break the link with the source file of the external model. When this option is activated, all parameters associated with the source file will be removed from the operation context menu.

Topics in this section:

•Edit External Model

See Also:

•Common Parameters of 3D Elements
