Calling the command:
Icon |
Ribbon |
|---|---|
|
3D Model > Advanced > Divide Assembly (3D) > Assembly > Divide |
Keyboard |
Textual Menu |
<3SD> |
Operation > Model Composition > Divide into Solids |
The command divides bodies, which consist of several physical parts, e.g. bodies resulting from:
•creating an array;
•applying a boolean addition to bodies, which are not geometrically connected to each other;
•applying a split without separation.
The command can also be used for dividing an imported model from other CAD systems consisting of several bodies. Resulting bodies can be used in any other operations.
The result of division is creating a separate body for each physical part of an original body. Operation created by the Divide command is called Separation in the 3D model tree:
|

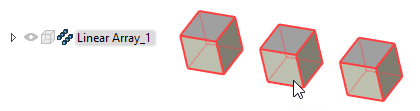

Array before division |
|

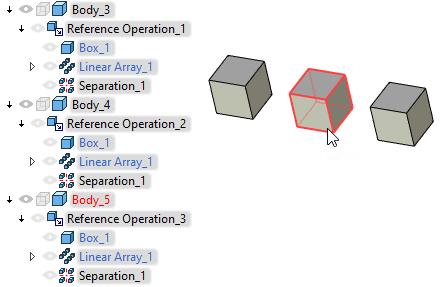

Array after division |
