Helix 3D Path |

|
Helix 3D Path |
|
Calling the command:
Icon |
Ribbon |
|
3D Model > Construct > Helix 3D Path Draw > 3D Model > Helix 3D Path Assembly (3D) > Construct > Helix 3D Path Sheet Metal (3D) > Construct > Helix 3D Path Surfaces > Construct > Helix 3D Path Weld > Construct > Helix 3D Path Primitives > Construct > Helix 3D Path Support Geometry > 3D Path > Helix 3D Path |
Keyboard |
Textual Menu |
<3PH> |
Construct > Helix 3D Path |
Automenu of the |
|
<L> |
Spiral Path |

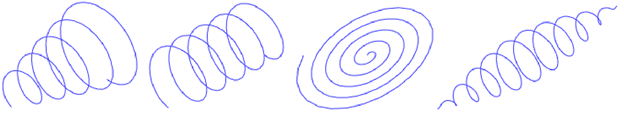

A helix path is a special type of 3D path that allows you to obtain a conical, cylindrical, flat or parametric screw curve around the selected axis.
Helix 3D Path types
Following types are available:
Information about creating 3D paths of each type can be found in corresponding sub-chapters.
