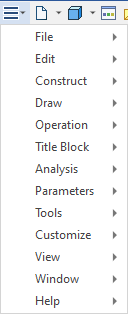

Text Command Menu

This menu is located under the title bar of the T-FLEX CAD window at the top of the screen.

The text menu of commands contains all the commands of the system, divided into groups. If you move the cursor to a group, information about this group of commands appears.

Commands in the text menu are divided into the following groups:

File - commands for working with drawings and drawing libraries.

Edit - commands for editing system elements.

Constructions - commands for creating auxiliary building elements.

Draw - commands for creating image elements.

Operations - operations teams when working with a three-dimensional drawing model.

Title Block - drawing design module.

Parameters - commands for working with a parametric drawing model.

Tools - commands for configuring the system and setting drawing parameters.

Customize - system configuration commands.

View - commands for moving around the drawing and system screen configuration.

Window - commands for working in multi-window mode.

Help - commands for obtaining reference information on the system and commands.

Select a command from the text menu:

•Move the cursor to the name of a group of commands and click . A drop-down menu appears with the names of the teams in the group. Move the cursor to the desired command and click .

•To select commands from the text menu using the keyboard, press <Alt>+<Key>, where “key” means the key on the keyboard corresponding to the letter underlined in this paragraph of the text menu. A drop-down menu with a set of commands will appear. Move the frame using <Up> and <Down> to the desired command and press <Enter>.

When a command is called from a text menu (for 2D commands), the current command is automatically stopped. For teams working with three-dimensional drawing elements, the next command can be called from the current command.
