Worksurface |

|
Worksurface |
|
Calling the command:
Icon |
Ribbon |
|---|---|
|
3D Model > Construct > Worksurface Draw > 3D Model > Worksurface Assembly (3D) > Construct > Worksurface Sheet Metal (3D) > Construct > Worksurface Surface > Construct > Worksurface Weld > Construct > Worksurface Primitives > Construct > Worksurface Support Geometry > Worksurfaces > Worksurface |
Keyboard |
Textual Menu |
<3SU> |
Construct > Worksurface |

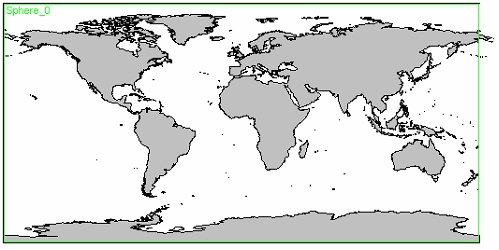

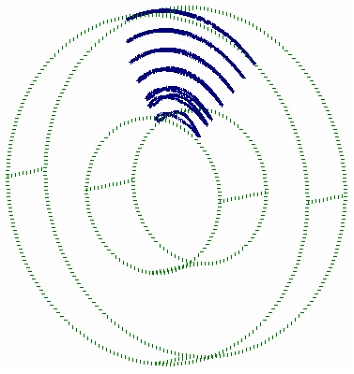

Worksurfaces are auxiliary 3D elements that represent geometrical surfaces of certain type. A cylinder, sphere or torus can be used as such surfaces. The functional purpose of worksurfaces is similar to that of workplanes. Generally, those are intended for carrying 2D objects over to the 3D space. Each worksurface is always related with a parametric region on a page of a 2D drawing. Auxiliary 3D elements, such as 3D nodes, 3D profiles and 3D paths, can be created based on a flat 2D image located on this page. Those elements will be placed on the respective worksurface – a cylinder, sphere or torus.

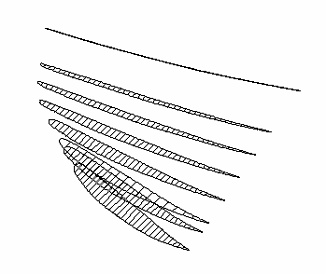

The main purpose of worksurfaces is creation of auxiliary objects (3D profiles, 3D paths, 3D nodes) for creating parts whose surfaces are curved in two directions: turbine blades, boat propellers, ship hulls, aircraft fuselages.
