Exclusions on 2D Projections and Drawing Views |

|
Exclusions on 2D Projections and Drawing Views |
|
Following Breaks and Clipping Contour options are added to the contextual menu of active projection's and drawing view's elements:
•Don't consider when calculating break lines
Elements affected by these options are added to the list in the Exclusions tab of projection's parameters:
Click
on active projection's element:
Select Breaks and Clipping Contour > Projection_# > Don't draw in the appeared contextual menu:
Selected element is not drawn anymore:
Don't consider when calculating break lines
This option is available both on 2D projections and on basic drawing views. However, on 2D projections it only affects lines representing contour of 3D model body. User-created graphic lines on 2D projections are not considered when calculating break lines anyway, no matter if this option is enabled or not.
|
The option is enabled for the red line |

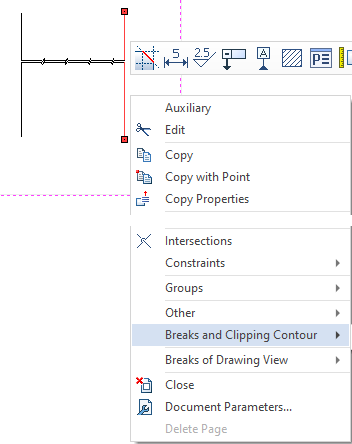

Click on active drawing view's element:

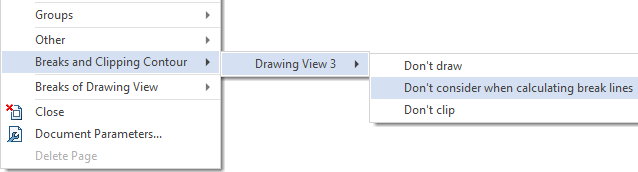

Select Breaks and Clipping Contour > Projection_# > Don't consider when calculating break lines in the appeared contextual menu:
Break line doesn't reach the selected element anymore:
Click on active projection's element:
Select Breaks and Clipping Contour > Projection_# > Don't clip in the appeared contextual menu:
Selected element is not clipped anymore:
