Play Exploded View Scenario

 Предыдущая страницаВ началоСледующая страница

Calling the command:

Icon

Ribbon

Exploded

Tools > Animation > Exploded View

Keyboard

Textual Menu

<3VX>

Tools > Exploded View

The command invokes the Exploded View tab of the ribbon and launches playback of an exploded view scenario. If there are multiple scenarios available in the current document, then the one created first gets played by default. After calling the command, you select another scenario to be played, and the selection will be kept, upon calling the command again in future. If there are no exploded view scenarios in the current document, the command is not available. Scenarios are created using the ExplodeEditor20x20 Exploded View Scenario command.

The tab gets closed automatically, upon calling commands, that require the model to be assembled.

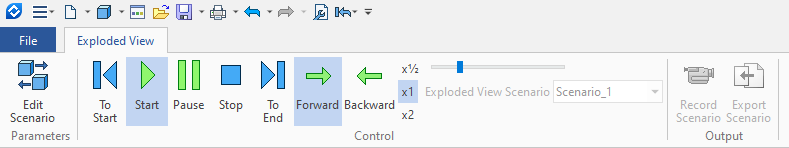

21ExplodedViewScenario14

the tab contains following groups of controls

Parameters

The group contains a single button:

ExplodeEditor20x20Edit Scenario
Launches the ExplodeEditor20x20 Exploded View Scenario command fro editing the current scenario. Current scenario is the one selected in the Exploded View Scenario drop-down list of this tab.

Control

This group contains buttons for controlling the scenario playback, similar to the Player tab of ExplodeEditor20x20 Exploded View Scenario command's parameters window.

21ExplodedViewScenarioIcon9 To Start
Stop the playback and rewind to the starting stage.
21ExplodedViewScenarioIcon6Start
Launch the playback.
21ExplodedViewScenarioIcon7Pause
Stop the playback and stay on the current stage. Press this button again to unpause.
21ExplodedViewScenarioIcon8Stop
Stop the playback and rewind to the starting or ending stage depending on the playback direction.

The playback may also be stopped by pressing <Esc>.

21ExplodedViewScenarioIcon10To End
Stop the playback and rewind to the ending stage.
21ExplodedViewScenarioIcon11Forward
As this button is active, the playback goes forward from the starting to the ending stage of the scenario.
21ExplodedViewScenarioIcon14Backward
As this button is active, the playback goes backward from the ending to the starting stage of the scenario.

Upon finishing the playback, the direction switches to opposite.

21ExplodedViewScenarioIcon16х1/2
As this button is active, the scenario is played with half speed.
21ExplodedViewScenarioIcon17х1
As this button is active, the scenario is played with normal speed.
21ExplodedViewScenarioIcon18х2
As this button is active, the scenario is played with double speed.

28_Slider Current time of explode
Position of the slider on the scale corresponds to position of the current animation stage within the whole scenario playback time. You can quickly rewind the animation to the desired stage by dragging the slider along the scale with pressed mouse left.

Exploded View Scenario
A scenario to be played is selected in this drop-down list.

Output

The group contains following commands:

Camera20x20Record Scenario
Export20x20Export Scenario
