Ribbon Interface

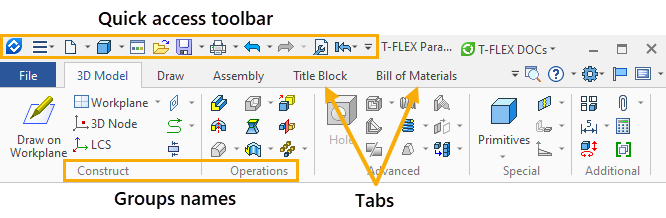

All commands on ribbon are distributed on tabs. Name of each tab reflects the content. Commands icons are grouped.

The upper right corner of the T-FLEX CAD main window contains the Quick Access Toolbar.

The upper right corner of the T-FLEX CAD main window contains:

•T-FLEX DOCs integration panel,

• List of ribbon tabs,

• Find Command button ,

• Help menu,

• System customization menu,

• Start Page button,

• Display modes menu.

The Ribbon adjusts to the current operating mode. For example, the 3D Model and Drawing tabs change when switching between 3D and 2D windows.

The system remembers on which tab the last selected command was located. If you select a Measure command in the 3D window, and then continue working in the 2D window, then the next time the 3D window is activated, the tab with the last command used in the 3D window will be active.

The Ribbon can be hidden by double-clicking on its tab. In this case, it reappears when you select any of its tabs. You can restore the ribbon by double-clicking again.

Tabs can be switched with the mouse wheel by hovering over them and rotating the wheel.

For personalization, it is possible to edit existing tabs and create your own tabs with the necessary commands and operations.

In the Ribbon it is possible to collapse\restore groups of commands.

The user can hide groups in the ribbon that he never uses.

Hidden groups can be restored from the context menu, which is called when you click in an empty space on the ribbon.

For any of the buttons in the ribbon, you can call the context menu, in which you can customize the display style of the button or hide it without entering the Settings.

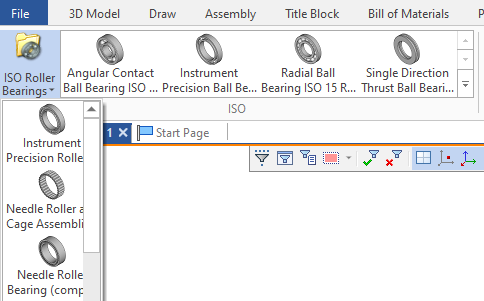

It is possible to add fragments from libraries to the ribbon. To do this, in the Customize command on the Ribbon tab, select the (insert fragment from library) category and drag the required files onto the Ribbon tab. This allows you to create your own ribbon tabs with library items or add them to existing tabs.

When you select the Create documents from prototypes, you can add an icon for creating a new document based on the specified prototype on the selected tab.
