Parameters of Report Generator > Pages

This tab of report generator parameters allows to set the automatic creation of additional pages on report generation, beside the pages containing the report itself. It may be useful, for instance, if you need to add a revision sheet to a BoM. The tab is available only for report location On new page.

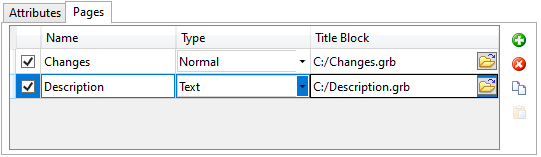

The tab contains the list of pages to be created. Usually, it's empty by default. In order to select a page in the list, click its row with . Buttons to the right allow to Add, Remove, Copy or Paste a page.

Following parameters are available for each page in the list:

•Checkbox for enabling/disabling the page creation
Only the pages with the enabled checkbox are created, when generating a report. Disabling the checkbox may be useful, if you do not need the page for the current report, but want to save its parameters for future usage.

•Name

•Type ( Normal, Text, Bill of Materials)

•Title Block
Path to a template file, whose content will be inserted into the page automatically. The button to the right invokes the standard file selection dialog.

See Also:

•Reports on Product Composition

•List of Report Generators

•Parameters of Report

•Parameters of Report Generator
