Reports on Product Composition

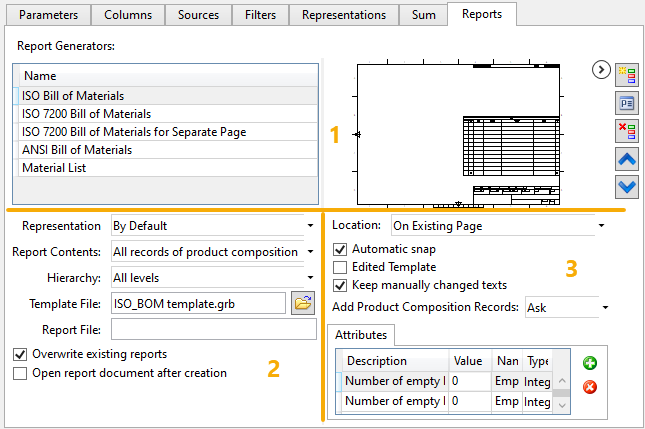

Default parameters of reports on the the corresponding product composition can be set on Reports tab of the Product Composition Parameters and Product Composition Types windows. The tab is split into following sections:

1 - List of Report Generators

2 - Parameters of Report

3 - Parameters of Report Generator



Same set of parameters is also displayed in report creation commands and in parameters dialog of an existing report. However, the report creation commands do not allow editing the list of generators, and all changes made in such commands affect only the report to be created in the current command's session. Parameters dialog of an existing report does not contain the list of generators at all (because it's impossible to switch generator for existing report), report parameters and report generator parameters in such dialog are displayed in separate tabs, and there may be additional tabs containing controls not available in the Product Composition Parameters and Product Composition Types windows.

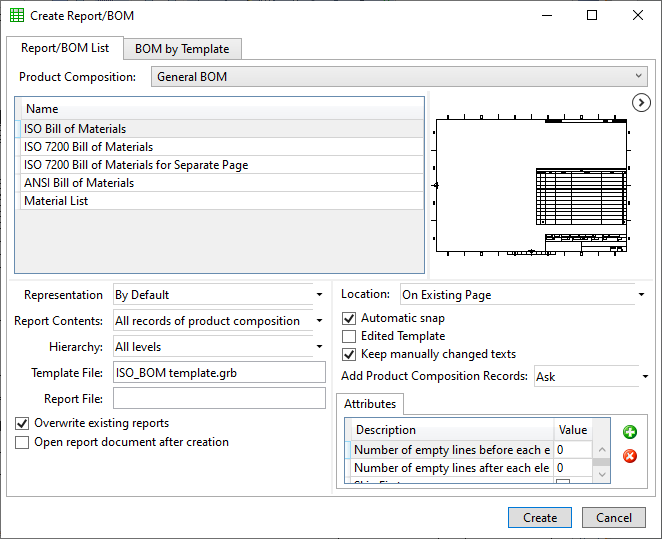

Dialog of report creation command

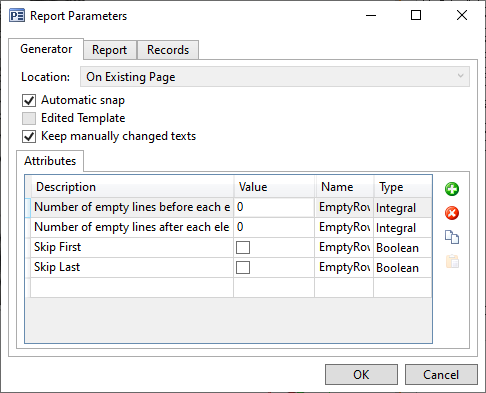

Parameters dialog of existing report

Topics in this section:

•List of Report Generators

•Parameters of Report

•Parameters of Report Generator
