Measurement Results

Upon selecting the elements to be measured, the list of measurement result gets displayed as a table in the Measure section of the Measure command's parameters window. Each row of the list is a particular property of the measured elements or a particular relation between such elements. The list contains following columns:

•Select Property for Report (this column appears upon enabling the Add to Report checkbox)
The property is included into the report, if its checkbox is enabled in this column.

•Description
Brief explanatory information about the measured parameter.

•Value
The value of the measured parameter.

•Units
Units of parameter's value measurement in accordance with the selected system of units.

•Property
Displays the system name of the measured parameter.

A result can be selected in the list by clicking its row with . The rows of selected results are highlighted. You can use <Ctrl>+ and <Shift>+ for selecting multiple results.

Below the list of results, there are the boxes indicating the following data on the currently selected result:

•Value
The value of the measured parameter. By default, the content of this box is the same as the the content of the eponymous column in the list. However, unlike the latter, here you can change units of measurement individually for the particular parameter.

•Expression
Expression to be used for creating a variable by the selected result.

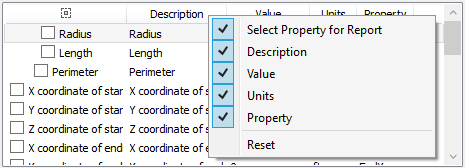

In order to change the order of the columns in the list of results, drag a column, while holding . The set of the columns to be displayed can be customized using the contextual menu invoked by pressing on a header of any column. Columns are displayed in the list of result, if their checkbox is enabled in the contextual menu. In order to enable or disable a checkbox, press on a desired menu item. The Reset item at the bottom of the menu returns the order and number of displayed columns to the default variant.

Filtering Measurement Results

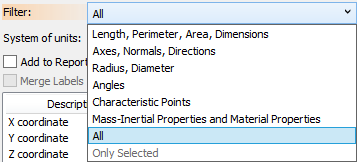

All measurable properties and relations of selected elements are displayed in the list of results by default. You can filter the list of results by the type of measured parameter using the Filter drop-down list located above.

If the filter contains only types not available for the selected elements, the list of measurement results will be empty.
