Parameters Window

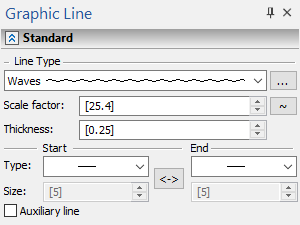

Following parameters are displayed in the Parameters tool window during creation and editing of graphic lines:
These parameters are described in the description of the Standard tab of the graphic line parameters dialog. The dialog additionally contains other parameters not displayed in the Parameters tool window.
When creating a line using sketch commands, some command-specific parameters may be additionally available in the lower section of the Parameters tool window.
Parameters Dialog
The parameters dialog
of a graphic line can be invoked in one of the following ways:
•by double-clicking
the line in 2D or 3D view window or in
Model Elements window;
•from the contextual menu, invoked by clicking
the line in 2D or 3D view window or in Model Elements window;
•from the dynamic toolbar, displayed upon selecting the line in 2D window, if the transparent editing of 2D elements is disabled;
•from the automenu of the Graphic Line command and sketch commands.
The parameters dialog of a graphic line contains following tabs:
