Contextual Menu of Text Content

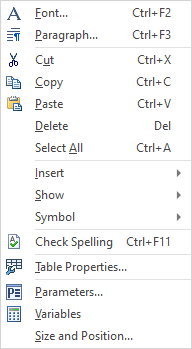

Within the text content editing mode for any type of text, except string text, pressing within text bounding rectangle invokes the following contextual menu:

Outside the text content editing mode the same action invokes the contextual menu of the whole text containing different set of commands.

The set of commands available in the menu depends on which element of the text content is selected when the menu is called, as well as on the presence of elements of a certain type in the current text. To call the command, hover the cursor over it and click . For some commands, the following ways of calling from the keyboard are additionally available:

•Hotkeys or key combinations
If a hotkey or key combination is available for the command, it is displayed on the right side of the menu bar. Calling commands in this way is also possible outside of this menu.

•Quick selection keys
If any letter of the command name in the menu is underlined, then you can call this command by pressing the appropriate key. This method of calling works only when the menu is displayed on the screen. Different language versions use different shortcut keys. In some cases, different commands may have the same quick selection key. E.g. on the image above you can see that the <P> key is used for three commands at once: Paragraph, Paste and Parameters. In this case, pressing a key does not trigger a command, but only highlights its line in the menu. Repeated keystrokes will sequentially switch the highlighting between these three commands. After the necessary command is highlighted, you need to press <Enter> to call it.



The following items may be available in the menu:

Opens the font parameters dialog for the selected content. If no content is selected, the parameters are applied to the current position of the text cursor.

Opens the paragraph parameters dialog for the selected content. If no content is selected, the parameters are applied to the current position of the text cursor.

Cuts the selected content to the clipboard. If the content is not selected, then the command is unavailable.

Copies the selected content to the clipboard. If the content is not selected, then the command is unavailable.

Pastes the content of clipboard into text. If the clipboard is empty or contains unacceptable type of data, then the command is unavailable.

Deletes the selected content. If the content is not selected, then the command is unavailable.

Selects the entire contents of the current text

See the Inserting Text from Dictionary section.

This item contains a drop-down menu in which the following commands are available:

See the Inserting Hyperlinks into Text section. Allows you to insert links to web pages, local files, macros, 2D and 3D elements, as well as pages of the current document.

See the Inserting Variables and Expressions into Text section. Allows you to insert the value of a text or real variable into the text. Using this command, you can either select one of the variables existing in the current document, or create a new one.

See the Inserting Position Numbers into Text section. Allows you to insert an entry position from the product composition, if there is one in the current document.

See the Inserting Position Numbers into Text section. This command is only available in the T-FLEX DOCs integration mode. Allows you to insert the position of the entry of the DOCs product structure into the text.

See the Inserting Position Numbers into Text section. Allows you to insert into the text the position of a record from a BOM created in the format of previous versions of T-FLEX CAD, if there is such a BoM in the current document.

See the Inserting Drawing Notes into Text section. Allows you to insert the drawing notes of the document into the text if they are available in the current document.

See the Inserting Indexes, Fractions and Radicals into Text section. Allows you to insert a pair of indexes (upper and lower) into the text with the default font scale.

See the Inserting Indexes, Fractions and Radicals into Text section. Allows you to insert a pair of indexes (upper and lower) into the text and adjust the font scale in a special dialog box.

See the Inserting Indexes, Fractions and Radicals into Text section. Allows you to insert a fraction with the default font scale into the text.

See the Inserting Indexes, Fractions and Radicals into Text section. Allows you to insert a fraction into the text and adjust the font scale in a special dialog box.

See the Inserting Indexes, Fractions and Radicals into Text section. Allows you to insert a radical with the default font scale into the text.

See the Inserting Indexes, Fractions and Radicals into Text section. Allows you to insert a radical into the text and adjust the font scale in a special dialog box.

See the Inserting Roughness, GD&T Symbols, Fragments and Pictures into Text section. Allows you to insert a roughness symbol into the text.

See the Inserting Roughness, GD&T Symbols, Fragments and Pictures into Text section. Allows you to insert GD&T feature control frame into the text.

See the Inserting Roughness, GD&T Symbols, Fragments and Pictures into Text section. Allows you to insert a 2D fragment into the text.

See the Inserting Roughness, GD&T Symbols, Fragments and Pictures into Text section. Allows you to insert a picture into the text.

This item contains a drop-down menu in which the following commands are available:

See the Display Options of Text Content Editing section. If this option is active (the icon is highlighted ), then when editing the text content, their names are displayed instead of the values of variables inserted into the text. Values are always displayed outside of the text content editing mode, regardless of the state of this option.

See the Display Options of Text Content Editing section. If this option is active (the icon is highlighted ), then when editing the text content, non-printable characters are displayed, which facilitate the visual perception of text formatting. These characters are not displayed outside of the text content editing mode, regardless of the status of this option.

This item contains a drop-down menu in which the following commands are available:

Inserts a symbol .

Inserts a symbol °.

Inserts a symbol ±.

Allows you to insert a character from the basic set.

Allows you to insert a character from the full set.

See the Check Spelling section.

Calls the table properties dialog. The command is available if the text cursor is located in one of the table cells.

Calls the dialog of the parameters of the element inserted into the text (roughness, GD&T feature control frame, 2D fragment, picture). Calls the expression constructor for the variable.

Calls the external variables editor of the fragment inserted into the text.

See the Inserting Roughness, GD&T Symbols, Fragments and Pictures into Text section. Opens a dialog where you can adjust the size and position of the inserted element relative to the text font.

Calls the command to edit the hyperlink inserted into the text.

Navigates through the hyperlink inserted into the text.

Copies the hyperlink inserted into the text to the clipboard.

Deletes the hyperlink inserted into the text.
