3D Node

Предыдущая страницаВ началоСледующая страница

Calling the command:

Icon

Ribbon

3DnodeBig

3D Model > Construct > 3D Node

Draw > 3D Model > 3D Node

Assembly > Construct > 3D Node

Sheet Metal (3D) > Construct > 3D Node

Surfaces > Construct > 3D Node

Weld > Construct > 3D Node

Routing > Construct > 3D Node

Primitives > Construct > 3D Node

Workplane > 3D Model > 3D Node

Keyboard

Textual Menu

<3N>

Construct > 3D Node

The following methods for creating 3D nodes are available:

3DNodes1pg

<A>

In Coordinates

3DNodes2

<P>

On Path

3DNodes3

<S>

On Surface

3DNodes4

<M>

In Center of Mass

53DNodes4

<R>

By Shortest Distance

53DNodes6

<Q>

On Intersection of Elements

3DNodes7

<K>

On Intersection of Three Planes

3DNodes8

<O>

By Faces and Offsets

3DNodes9

<J>

By Two Projections

In general, the process of creating a 3D node using any of the above methods includes the following steps:

Select how to create a 3D node. Each method has a separate option in the automenu or on the Type tab in the command parameters window.

Specify the source objects and set the required parameters.

Apply the operation using the automenu icon AutomenuOk1 or in the command parameters window. You can also confirm the command by double-clicking mouse left on an empty space in the 3D scene.

If you select a particular model object immediately after running the command, the system will automatically select a method for creating a 3D node in accordance with the following rules:

When you select 2D nodes, the By Two Projections method is activated;

When selecting 3D nodes, vertices, and LCS, the In Coordinates method is used;

When selecting edges, 3D paths, and 3D profiles, use the On Path method;

When selecting faces, workplanes, and surfaces, use the On Surfaces method;

When selecting solids, use the In Center of Mass method.

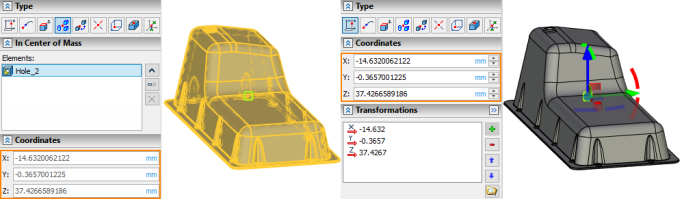

Switching from any method of creating a 3D node to a method In coordinates enables you to convert the created 3D node to absolute coordinates.

3DNodes1

Manipulators of 3D nodes

When creating and editing 3D nodes, the Options tab of the parameters window contains the Use Manipulators checkbox. It is enabled by default, so manipulators of node's position are displayed in the 3D scene. Disabling the checkbox disables manipulators. Appearance of manipulators and their linked parameters depend on the type of node. For some types of node manipulators are not available. Work with manipulators is described in sections describing particular types of node.

13_NodeOptions

Topics in this section:

3D Node in Coordinates

3D Node on Path

3D Node on Surface

3D Node in Center of Mass

3D Node by Shortest Distance

3D Node on Intersection of Elements

3D Node on Intersection of Three Planes

3D Node by Faces and Offsets

3D Node by Two Projections

Creating 3D Node without calling command

Parameters Dialog of 3D Node

Edit 3D Node
