Parameters Dialog of Hatch

The parameters dialog of a hatch can be invoked in one of the following ways:

•by double-clicking the hatch in drawing window or in Model Elements window;

•from the contextual menu, invoked by clicking the hatch in drawing window or in Model Elements window;

•from the dynamic toolbar, displayed upon selecting the hatch in drawing window;

•from the automenu of the Hatch and Edit Hatch commands.

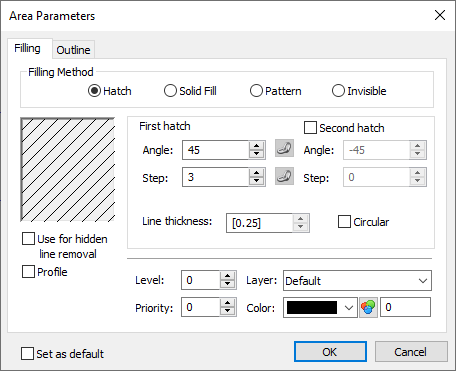

10_HatchDialog

The parameters dialog contains following tabs:

•Filling
Contains same parameters as the General Parameters tab of the Hatch command's parameters window. Additionally allows to customize Level, Priority, Layer and Color of filling. Moreover, there is the Profile checkbox in the left section of the tab. If you enable this checkbox, the selected hatch can be used in the Profile command.

•Outline
Contains same parameters as the Outline tab of the Hatch command's parameters window.
