Parameters Dialog of Roughness

The parameters dialog of a roughness designation can be invoked in one of the following ways:

•by double-clicking the designation in 2D or 3D view window or in Model Elements window;

•from the contextual menu, invoked by clicking the designation in 2D or 3D view window or in Model Elements window;

•from the dynamic toolbar, displayed upon selecting the designation in 2D or 3D view window;

•from the automenu of the Roughness and Edit Roughness commands.

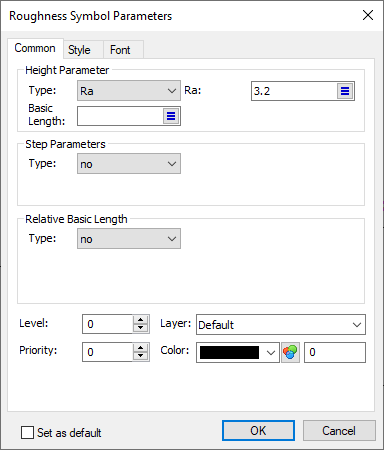

10_RoughDialog

The parameters dialog contains following tabs:

•Common
Contains same parameters as the Height Parameter, Step Parameter and Relative Basic Length tabs of the Roughness command's parameters window. Additionally allows to customize Level, Priority, Layer and Color.

•Style
Contains same parameters as the Style and Arrow tabs of the Leader Note command's parameters window.
