Parameters Dialog of Leader Note

The parameters dialog of a leader note can be invoked in one of the following ways:

•by double-clicking the leader note in 2D or 3D view window or in Model Elements window;

•from the contextual menu, invoked by clicking the leader note in 2D or 3D view window or in Model Elements window;

•from the dynamic toolbar, displayed upon selecting the leader note in 2D or 3D view window;

•from the automenu of the Leader Note and Edit Leader Note commands.

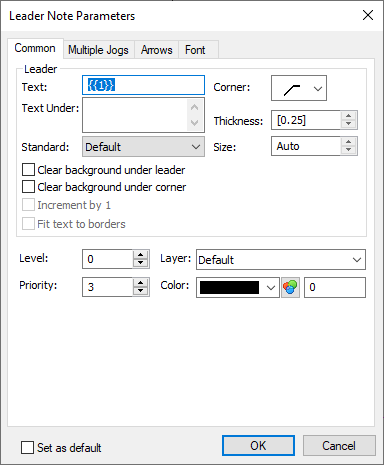

10_LeaderParametersDialog1

The parameters dialog contains following tabs:

•Common
Contains same parameters as the Leader tab of the Leader Note command's parameters window. Additionally allows to customize Level, Priority, Layer and Color.

•Multiple Jogs
Contains same parameters as the Multiple Jogs tab of the Leader Note command's parameters window.

•Arrows
Contains same parameters as the Arrows, Arrow, Arrow Text and Symbol on Arrow tabs of the Leader Note command's parameters window.

•Font
See the Font Parameters of Drawing Detailing Elements section.
